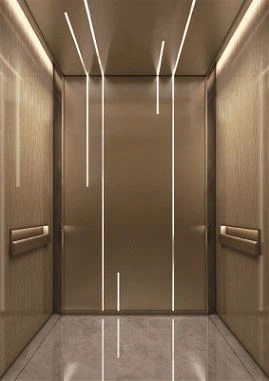

1000kg Building Passenger Elevators Cabin design:
Ceiling: Bronze mirror stainless steel+ LED light strip
Side Wall: Bronze hairline stainless steel
Rear Wall: Bronze hairline stainless steel+LED light strip
Handrail: Bronze handrail
Floor: Marble spelling
Main features:
Integrated control system A new generation of intelligent vector integrated control system is combined with elevator control and drive. Compact structure, smaller size, more convenient operation, better cost performance
No need for a separate computer room.
Simple installation: shallow pits, no need to construct wells, and the highest utilization rate of wells.
Energy saving: If no one uses the elevator within 15 minutes, the lights in the car will automatically turn off.
Low noise, low vibration: frequency conversion driving mode, elevator operation and parking are extremely quiet and stable.
Advantages of Machine Roomless elevator(MRL):
. It saves space because it takes up less structural space.
. As it is easy to install, it is suitable for various structures.
. Because it saves 40% of energy, it is very economical.
. The noise pollution is eliminated by the gearless motor.
. The operation of the gearless motor is extremely safe, quiet and vibration-free.
. It is suitable for buildings with a large flow of people.
. It will not add any additional load to the static load of the building.
1000kg Building Passenger Elevators Techinal Specification:
| Load(kg) | Speed(m/s) | Max. Travel(m) | Cabin Size(mm) CW*CD*CH | OP(mm) 2P CO | Shaft Size(mm) HW*HD | Pit(mm) | Overhead(mm) | Motor Power(kg) |
| 1000 | 1.0 | 20 | 1600*1400*2500 | 900*2100 | 2050*2050 | 1400 | 4200 | 6.7 |
| 1.5 | 24 | 1500 | 4400 | 11.7 | ||||
| 2.0 | 40 | 1750 | 4750 | 13.4 | ||||
| 2.5 | 45 | 1900 | 4950 | 16.8 |
