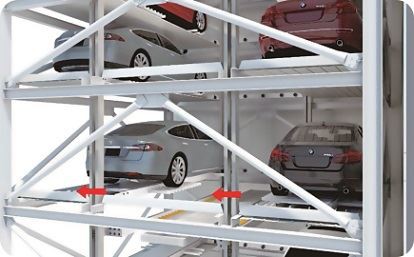

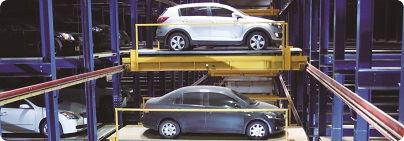

AGUSTIN PPY auto puzzle parking system working principle is: each parking space contains a car plate to reach the ground floor by lifting, lowering and sliding movement so that the driver is able to enter the garage and get access to the car. The top and the underground floor is full parking, only lifting movement is needed for them. The remaining floors are required to leave an empty shift for both sliding and lifting movement. The ground floor only have sliding movement. The only thing for user to do is to insert a card or push a button, and the whole process is automatically done by the controlling system.
Features:
Adaptable, flexible layout (Low requirement on building structure: the combination and arrangement can be adjusted to specific terrain and space, which is applicable to not only underground parking lot, but also outdoor parking space with peripheral anti-canopies, fences, and other facilities to increase the aesthetics);
Steel structure component, simple appearance and simple transmission;
Smoothing operation, safe and reliable;
Energy saving, environment protecting, low noise;
Low cost, easy installation, easy maintenance;
Flexible set up, meeting the needs of different customers;
Multiple security detection device.
PPY Auto Puzzle Parking System Techincal Specification:
| Type | T | D | |||||
| Size of Car | L | ≤5300mm | ≤5000mm | ||||
| W | ≤1900mm | ≤1850mm | |||||
| H | ≤1550mm | ≤1550mm | |||||
| Weight | ≤2500kg | ≤1800kg | |||||
| Size of the equipmemt | Distance of booths in union | A | 2500mm | 2500mm | 2450mm | 2500mm | |
| Postlongitudinal spacing | B | 6200mm | 6200mm | 5900mm | 5900mm | ||
| Front post to enter at a distance | C | 1050mm | 1050mm | 915mm | 915mm | ||
| Overall length of equipment | B+310 | 6510mm | 6510mm | 6210mm | 6210mm | ||
| Overall width of equipment | N*A+270 | 12770mm | 13020mm | 12520mm | 12770 | ||
| Both sides column distance | N*A | 12500mm | 12750mm | 12500mm | 12500mm | ||
| Motor power | Tansverse | 0.2kw | |||||
| Lifting and lowering | 2.2kw | ||||||
| Speed | Sliding speed | 7~8m/min | |||||
Lifingt Speed | 4~5m/min | ||||||
| The average vehicle access time | ≤30s | ||||||
| Noise | ≤60dB | ||||||
| Control mode | PLC program control | ||||||
| Operation mode | Button type, IC card (optional) | ||||||
| Power Supply | 3phase 5 wire system AC 380V 50Hz | ||||||
| Average fetch car time | ≤50s | ||||||
